1 Features

• Single Power Switch Family

• Pin-for-Pin With Existing TI Switch Portfolio

• RatedCurrentsof0.5A,1A,1.5A,2A

• ±20% Accurate, Fixed, Constant Current Limit

• Fast Overcurrent Response: 2 μs

• Deglitched Fault Reporting

• Selected Parts With (TPS20xxC) and Without (TPS20xxC-2) Output Discharge

• Reverse Current Blocking

• Built-In Soft Start

• Ambient Temperature Range: –40°C to 85°C

• UL Listed and CB-File No. E169910

2 Applications

• USB Ports and Hubs, Laptops, and Desktops

• High-Definition Digital TVs

• Set-Top Boxes

• Short-Circuit Protection

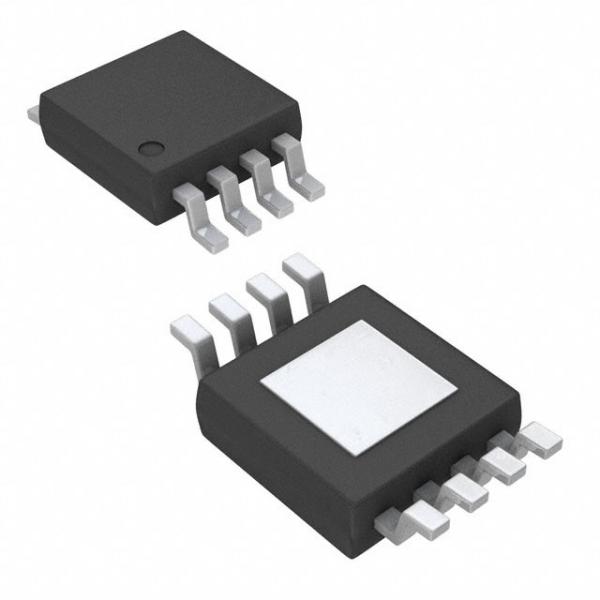

3 Description

The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A.

The TPS20xxC and TPS20xxC-2 family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
