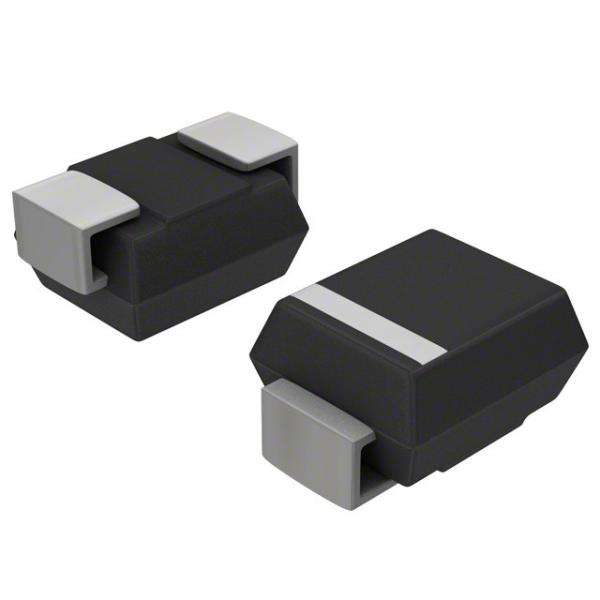

ES2J bridge type rectifier diode Rectifier Diode SURFACE MOUNT GLASS SUPERFAST RECOVERY RECTIFIERS

Model Number : ES2J

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8900pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Description : Diode 600 V 2A Surface Mount SMA (DO-214AC)

Maximum Average Forward Rectified Current : 2.0 A

Maximum Reverse Recovery Time : 35 nS

Typical Thermal Resistance : 25 ℃/W

Operating Temperature Range : -55 to +150 ℃

Storage Temperature Range : -55 to +150 ℃

Weight : 0.003 ounces,0.093 grams

Contact Now


SURFACE MOUNT SUPER FAST GLASS PASSIVATED RECTIFIERS

REVERSE VOLTAGE - 50 to 600 Volts
FORWARD CURRENT - 2.0 Amperes

FEATURES
● Super fast switching time for high efficiency
●Low forward voltage drop and high current capability
●Low reverse leakage current
●Plastic material has UL flammability classification 94V-0

MECHANICAL DATA
●Case: Molded Plastic
●Polarity:Color band denotes cathode
●Weight: 0.003 ounces,0.093 grams
●Mounting position: Any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20%

CHARACTERISTICSSYMBOLES2AES2B ES2DES2G ES2J UNIT
Maximum Recurrent Peak Reverse VoltageVRRM 50100200400600V
Maximum RMS VoltageVRMS3570140280420V
Maximum DC Blocking VoltageVDC50100200400600V
Maximum Average Forward Rectified Current @TA=50 ℃I(AV) 2.0A

Peak Forward Surge Current

8.3ms Single Half Sine-Wave

Super Imposed on Rated Load(JEDEC Method)

IFSM75A
Peak Forward Voltage at 2.0A DCVF0.951.251.70V

Maximum DC Reverse Current @TJ=25℃

at Rated DC Blocking Voltage @TJ=100℃

IR

5.0

100

μA
Maximum Reverse Recovery Time(Note 1)TRR35nS
Typical Junction Capacitance (Note2)CJ4030pF
Typical Thermal Resistance (Note3)RθJA25℃/W
Operating Temperature RangeTJ-55 to +150℃
Storage Temperature RangeTSTG-55 to +150℃

NOTES:
1.Measured with IF=0.5A, IR=1A, IRR=0.25A
2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC
3.Thermal resistance junction to ambient.
