TPC8111 Field Effect Power Mosfet Transistor Silicon P Channel MOS Type HEXFET Power MOSFET

Product Categories
ChongMing Group (HK) Int'l Co., Ltd
Contact Now

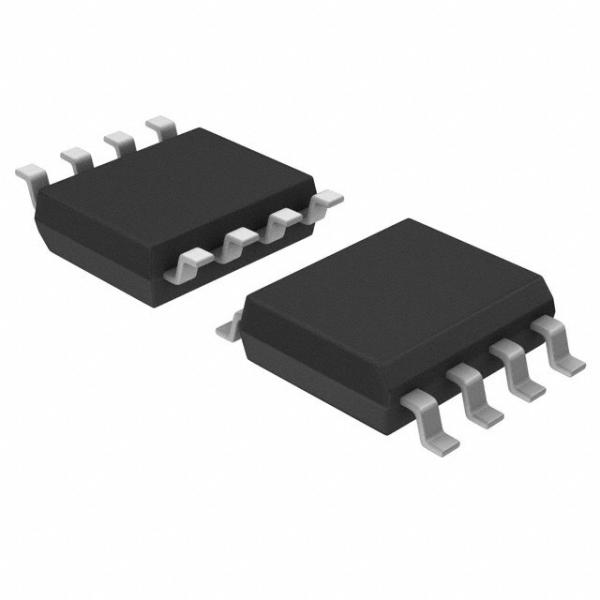

TPC8111 Field Effect Power Mosfet Transistor Silicon P Channel MOS Type HEXFET Power MOSFET

Brand Name : TOSHIBA

Model Number : TPC8111

Certification : Original Factory Pack

Place of Origin : Taiwan

MOQ : 5pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 580PCS

Delivery Time : 1 Day

Packaging Details : please contact me for details

Description : P-Channel 30 V 11A (Ta) 1W (Ta) Surface Mount 8-SOP (5.5x6.0)

VDSS : −30 V

VDGR : −30 V

VGSS : ±20 V

ID : −11 A

PD : 1.9 W

Contact Now


TPC8111 Field Effect Transistor Silicon P Channel MOS Type HEXFET Power MOSFET

Lithium Ion Battery Applications

Notebook PC Applications

Portable Equipment Applications

• Small footprint due to small and thin package

• Low drain-source ON resistance: RDS (ON) = 8.1 mΩ (typ.)

• High forward transfer admittance: |Yfs| = 23 S (typ.)

• Low leakage current: IDSS = −10 µA (max) (VDS = −30 V)

• Enhancement-mode: Vth = −0.8 to −2.0 V (VDS = −10 V, ID = −1 mA)

Note: For (Note 1), (Note 2), (Note 3) and (Note 4), please refer to the next page. This transistor is an electrostatic sensitive device. Please handle with caution

Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit
Drain-source voltage VDSS −30 V
Drain-gate voltage (RGS = 20 kΩ) VDGR −30 V
Gate-source voltage VGSS ±20 V
Drain power dissipation (t = 10 s) PD 1.9 W
Drain power dissipation (t = 10 s) PD 1.0 W
Single pulse avalanche energy EAS 31.5 mJ
Avalanche current IAR −11 A
Repetitive avalanche energy EAR 0.19 mJ
Channel temperature Tch 150 °C

STOCK LIST

HMHAA280R1 1520 FAIRCHILD 16+ SOP-4
LQH55PN100MROL 6782 MURATA 16+ SMD
MSS1260-683MLD 6890 COILCRAFT 16+ SMD
TSL1112RA-102JR50-PF 10000 TDK 14+ DIP
MJE340G 10000 ON 16+ TO-126
BD139-16 5500 ST 16+ TO-126
BD140-16 5500 ST 15+ TO-126
2SC2625 3000 FUJI 15+ TO-3P
TR600-150 38000 TYCO 16+ DIP
A1324LUA-T 3420 ALLEGRO 15+ SIP-3
LVR040K 38000 RAYCHEM/T 16+ DIP
LVR025S 38000 RAYCHEM/T 16+ DIP
MF-R010 38000 BOURNS 16+ DIP
MF-R017 25000 BOURNS 16+ DIP
BFR96TS 5000 VISHAY 15+ TO-50
M28S 20000 UTC 10+ TO-92
MF-R040 40000 BOURNS 14+ DIP
LVR040S 38000 RAYCHEM/T 16+ DIP
LVR075S 5063 RAYCHEM/T 16+ DIP
MF-R600 10000 BOURNS 16+ DIP
MF-R090 38000 BOURNS 16+ DIP
PKM13EPYH4000-AO 5000 NURATA 10+ DIP
DE1E3KX102MJ5BA01 900 MURATA 15+ DIP
LVR012 38000 TYCO 16+ DIP
CS1024 3750 ZX 15+ TO-92S
20D151K 3000 ZOV 16+ DIP
LPD6803S 30000 LPD 15+ SOP-16
MICROSMD005F-2 25000 TYCO 16+ SMD
BLM21BD601SN1D 8000 MURATA 15+ SMD
BLM21AG01SN1D 8000 MURATA 15+ SMD
AT24C02D-SSHM-T 4000 ATMEL 15+ SOP-8
VESD05A1B-02Z-GS08 40000 VISHAY 15+ SOD-923
AT24C02BN-SH-T 4000 ATMEL 15+ SOP-8
MICROSMD050F-2 25000 TYCO 16+ SMD
NDT2955 16800 FAIRCHILD 14+ SOT-223
AY1112H-TR 8000 STANLEY 09+ SMD
NFM3DCC223R1H3L9 38000 MURATA 16+ SMD
